Type：SG9300
Introduction：

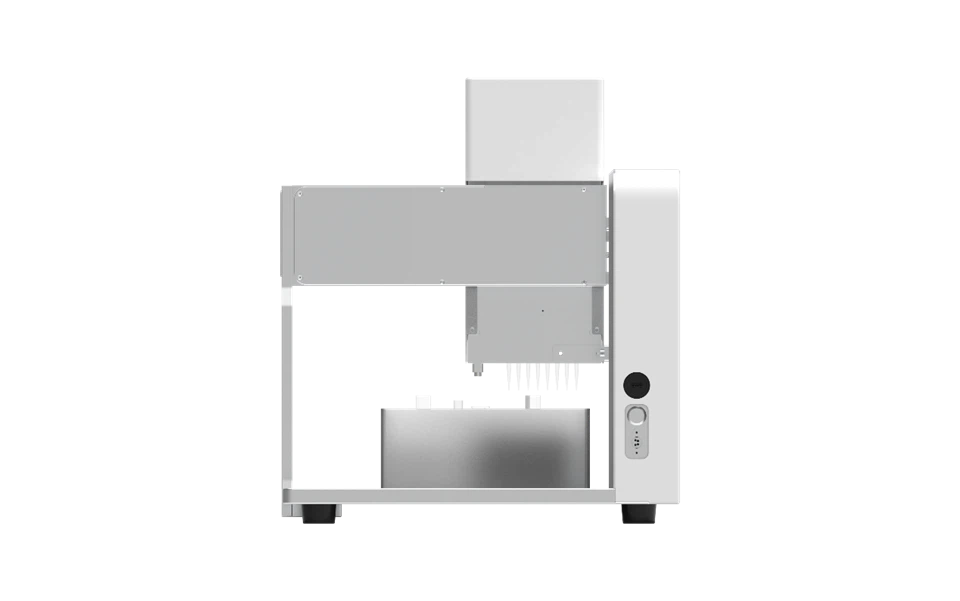

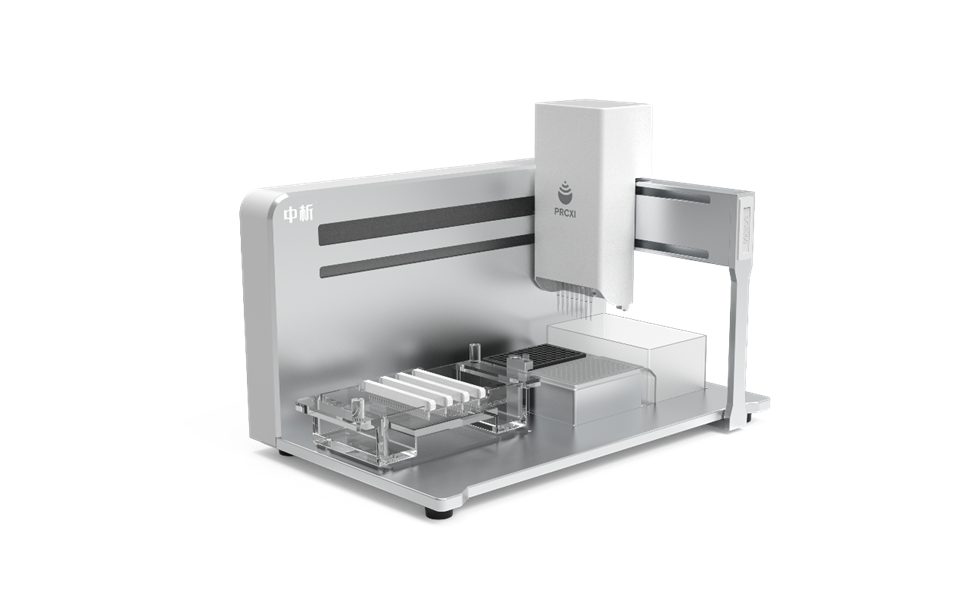

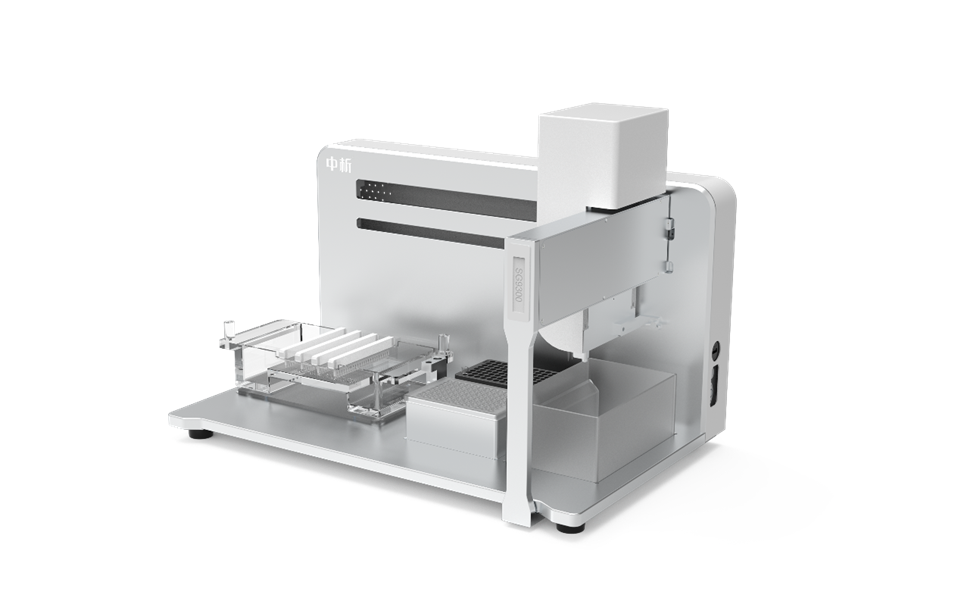

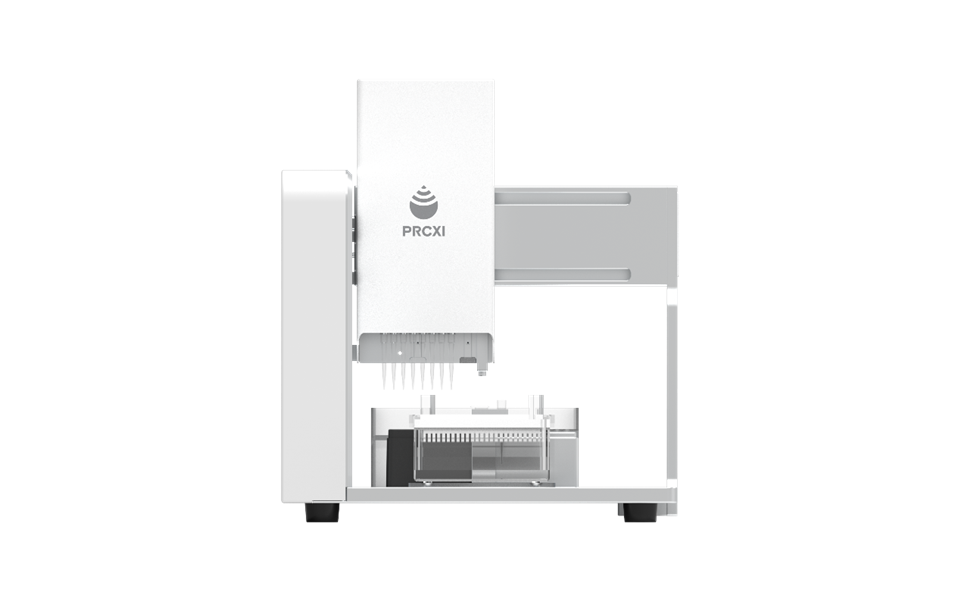

The SG9300 is a flexible, highly accurate and fully automated pipetting workstation equipped with 8 channels for pipetting applications such as agarose gel electrophoresis sample uploading or PCR amplification system construction, gradient dilution and other pipetting applications.
Features：
1.8-channel spotting (pipetting channels & ranges and needle pitch module can all be customized.)
2.Pipetting and dispensing by air displacement principle.
3.Multiple plate positions can be freely arranged.
4.Marker reagent tube placement.
5.Electrophoresis spotting plate.
6.Two standard SBS stations.
7.Compatible with detection and recovery gels.
Specification
|
Instrument |
SG9300 Gel electrophoresis system |
|
Channels |
4/8 |
|
Pipetting Technology |
Air displacement |
|
Pipetting range |
0.5-1000μL |
|
Precision |
≤5% (200μL) |
|
8 channels glue comb |
142.4X119.6 X 30.5(13*4) |
|
4 channels glue comb |
198 X 8 X 26( 25*4) |
|
Gel hole size |
86.85X2.42.9X3 |
|
Software |
ZWorks automation software, Api interface available |
|
Operating platform |
Windows |
|
Software interface |
USB Interface,RS-232 Serial Port |
|
Power Requirements |
100-240VAC-350W.50-60Hz |
|
Working environment |
15-40℃,relative humidity 20-80%, non-condensing |
|
Net weight |
17KG |
|
Size |
665x400x467mm |
