BRIEF DESCRIPTION：
As an emerging technology, organoid has great potential in the field of scientific research, including developmental biology, disease pathology, cell biology, regeneration mechanism, precision medicine, and drug toxicity and efficacy testing.
KEY FEATURES AND BENEFITS：
1.This high-throughput bioprinting with a variety of cell culture well plates is precise and stable to ensure accurate and reliable data.
2.The main frame is equipped with XY-axis servo motion system, 1+8-channel pipetting module, warming module and refrigeration module.
3.The FFU, illumination lamp and U killing lamp are equipped with separate switches on the software interface, which greatly improves the efficiency of the experiment.
4.1+8 channel print module
5.Three-axis system
Specification

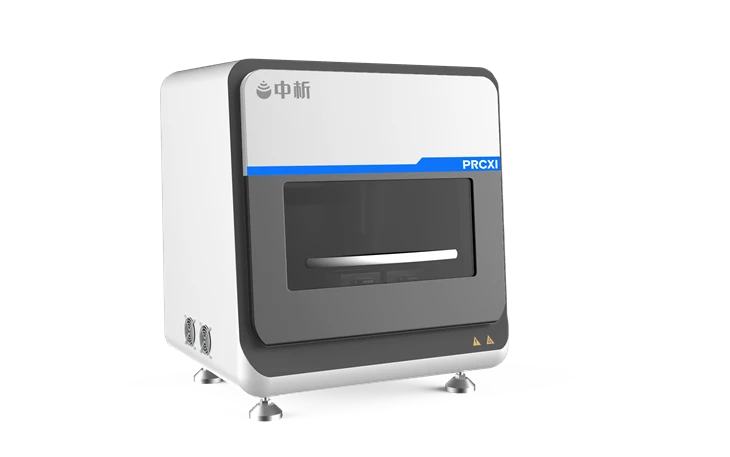

| Instrument | OrganoidStudio 1000 Organoid high-throughput bioprinting workstation |
| Channels | 1+ 8 channels |
| Pipetting range | 3-300μL |
| Pipetting technique | Air displacement |
| Precision | 3μL,CV<5% |
| Refrigeration module | Temperature range:0~4℃: Temperature accuracy: no more than ±2℃; Temperature uniformity: no more than ±2℃ |
| Heating Module | Temperature range: room temperature ~95℃ ; temperature accuracy: no more than ±2℃; temperature uniformity: no more than±2℃ |
| Power Requirements | Input:100-240VAC±10%,Frequency50/60Hz±5%; Output:24V |
| Equipment power | 1500W |
| Safety protection | UV disinfection function,filtration function,negative pressure system |
| Interface | 1 USB,1 Ethernet port |
| Working environment | 15-40℃.Relative humidity 20-80%, non condensing |
| Size | 760x680x900mm |
